2500VAC 470K Resistance SCR Voltage Regulator For Electronics

    Buy cheap 2500VAC 470K Resistance SCR Voltage Regulator For Electronics from wholesalers

    Buy cheap 2500VAC 470K Resistance SCR Voltage Regulator For Electronics from wholesalers
    • Buy cheap 2500VAC 470K Resistance SCR Voltage Regulator For Electronics from wholesalers

    2500VAC 470K Resistance SCR Voltage Regulator For Electronics

    Ask Lasest Price
    Brand Name : Gold
    Model Number : SAVR Series
    • Product Details
    • Company Profile

    2500VAC 470K Resistance SCR Voltage Regulator For Electronics

    SCR Voltage Regulator


    Description of SCR Voltage Regulator

    Specification of SCR Voltage Regulator


    solid state relay PDF: https://maiimg.com/free/?e=dyPPp/s2DmrS66


    rectifer.pdf


    power controller.pdf


    2500VAC 470K Resistance SCR Voltage Regulator For Electronics

    Performance Parameter


    Main technical parameter

    Type

    SAVR2210 SAVR2220 SAVR2225

    SAVR2240 SAVR2260 SAVR2280

    SAVR3810 SAVR3820 SAVR3825

    SAVR3840 SAVR3860 SAVR3880

    Load adgusting voltage0-220VAC0-380VAC
    Current raitings10A,20A,25A,40A,60A,80A
    Adgusting resistance470K680K
    Link bet.In& outThe input and output of products is not isolated, please choose insulated good potential and knob to prevent shock!
    Isolation to case≥2500VAC 1 min
    Turn to voltage≤2V (Effective heating power consumption 1V × work current)
    Operating temperature- 40~ 80C

    2500VAC 470K Resistance SCR Voltage Regulator For Electronics

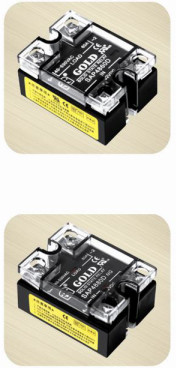

    2500VAC 470K Resistance SCR Voltage Regulator For Electronics

    Performance Parameter


    Main technical parameter

    Type

    SAP4805D-TL SAP4810D-TL SAP4815D-TL SAP4825D-TL SAP4840D-TL

    SAP4850D-TL SAP4860D-TL SAP4870D-TL

    SAP4880D-TL SAP4890D-TL

    Load voltage range40- 530VAC
    Max Load current5A,10A,15A,25A,40A50A,60A,70A,80A,90A
    Isolation bet.In& out≥3000VAC 1min
    Isolation to case≥3000VAC 1min
    Control voltage range3- 32VDC
    Control current6-20mA(20mA @ max input 32VDC)
    OutputBCR,Zero switchingTwo SCR inverse parallel, Zero switching
    Turn-on voltage≤1.3VAC
    Off-state leakage≤3mA
    Off-state dv/dt300v/μs500v/μs
    On or off timeTon=0.3 Toff=10ms @ 50Hz
    Frequenty range47/63Hz
    Status indicatorINLED and out on LED
    Operating temperature-40~ 80°C

    2500VAC 470K Resistance SCR Voltage Regulator For Electronics


    Our Company


    Founded in 1992, Wuxi Gold Control Technology Co., Ltd., a private high tech company, is specialized in the research and production of Solid State Relays, Electronic Semiconductors, DC Motor Drivers and AC Voltage Regulation Devices.


    For the past 10 consecutive years, our company has been qualified as "Jiangsu's private high tech business". We have also been given the honor as "Wuxi's 10 Best Private Science & Technology Enterprises" for years.


    Our products, the electronic modules with the brand of Gold, have been listed among "Wuxi's Renowned Products".Our company has 5 patents on Solid State Relays. Our products are widely used in various industrial automation control areas like chemical fiber machinery, temperature control of electric furnace, rubber & plastic machinery, fountain control and digital-controlled machinery, and are sold to Europe, America, Korea and Turkey.


    001 AC SSR Relay AC SSR of Horizontal Type Double LED Indicator 1


    Our Factory


    Our factory can produce about 50,000 pieces each month. We can give you good quality and reasonable prices. We have 20 professional research people who have all been graduated from famous universities and colleges. When producing, we have strict tests: self-test, inter-test and special-test.


    001 AC SSR Relay AC SSR of Horizontal Type Double LED Indicator 2


    Our Certificate


    Our products, the electronic modules with the brand of Gold, have been listed among "Wuxi's Renowned Products".Our company has 5 patents on Solid State Relays. Our products are widely used in various industrial automation control areas like chemical fiber machinery, temperature control of electric furnace, rubber & plastic machinery, fountain control and digital-controlled machinery, and are sold to Europe, America, Korea and Turkey.


    Our company passed the Certification of ISO9001:2000 in 2000. Our main products have been given CE Certificate of European Union, UL,CUL and RoHS Certificates.


    001 AC SSR Relay AC SSR of Horizontal Type Double LED Indicator 3

    001 AC SSR Relay AC SSR of Horizontal Type Double LED Indicator 4
