    60A Solid State Motor Contactor

    Ask Lasest Price
    Brand Name : Gold
    Model Number : SAT4060
    Certification : CE
    Price : 21usd/piece
    Payment Terms : L/C, T/T, MoneyGram
    Supply Ability : 10000pcs/day
    Delivery Time : 5-8 working day
    • Product Details
    • Company Profile

    60A Solid State Motor Contactor

    SAT4060, 60A solid state contactor, input control 12VDC/110VAC/220VAC, 60A contactless contactor


    solid state relay PDF: https://maiimg.com/free/?e=dyPPp/s2DmrS66


    rectifer.pdf


    power controller.pdf


    SAT series solid state contactor
    ■ Product introduction:
    To
    ◆ Integrated heat dissipation auxiliary contact design, beautiful appearance
    ◆ Auxiliary contact function conforming to the working principle of traditional AC contactor
    ◆ The on-state voltage of the core components is reduced, and the circuit design is mature and reliable (internal constant current)
    ◆ Can be used in AC 50Hz (or 60Hz), rated working voltage to 480V circuit
    ◆ It can be combined with a suitable thermal overload relay to form a circuit that may be overloaded
    ◆ Dimensions can replace all kinds of traditional imported and domestic AC contactors with the same power
    ■ Model and meaning:
    Note: Selection principle of GOLD SAT series solid state contactor: resistive load rated current ≤ nominal current/2
    Inductive load rated current ≤ nominal current/8
    ■ Main technical parameters:
    ModelSAT4060ASAT4060D
    Parameter
    Control voltage90-280VAC10-32VDC
    Load voltage40-530VAC40-530VAC
    On-state pressure drop<1.3V<1.3V
    Off-state voltage rise rate500V/Us500V/Us
    On-off time>10mS>10mS
    Trigger methodZero crossing triggerZero crossing trigger
    Insulation voltage﹥2000VAC﹥2000VAC
    Auxiliary contactTwo pairs of normally open, one pair of normally closedTwo pairs of normally open, one pair of normally closed
    Auxiliary contact capacity250VAC 5A250VAC 5A
    Operating environment temperature range-20-80 ℃-20-80 ℃

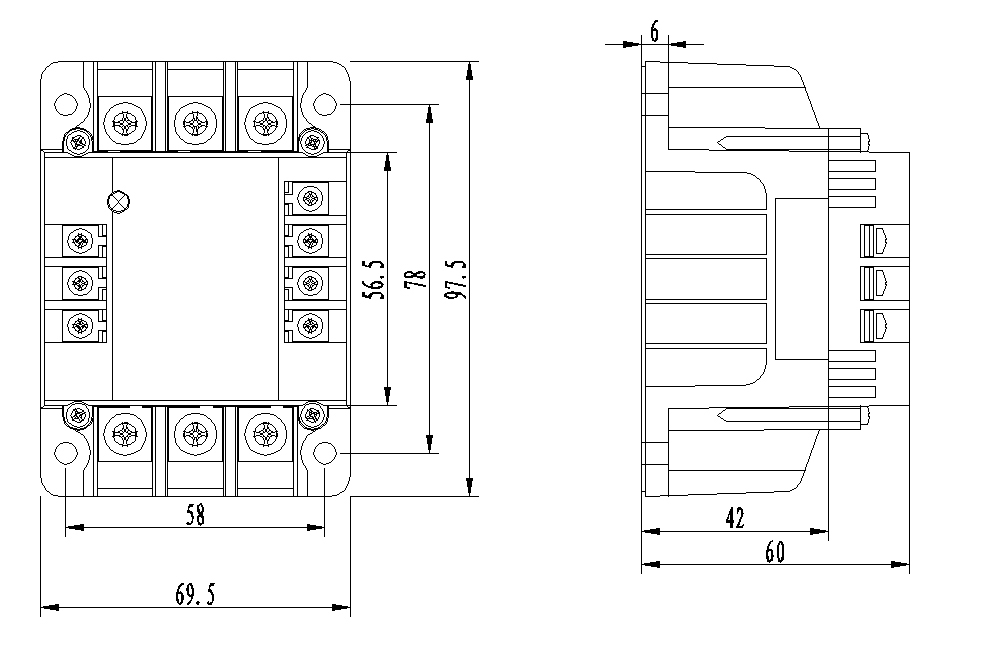

    Main technical parameters (unit: mm):


    ■ Installation and commissioning:
    1,Correct wiring method
    ◆ The main circuit input terminals L1, L2, L3 are connected to the input power supply;
    ◆ The main circuit output terminal T1 T2 T3 is connected with the load;
    ◆ The control signal terminal CONTROL is connected with the corresponding control signal power supply;
    ◆ The auxiliary terminals A1, A2, A3 and 13-14 are respectively connected to the corresponding auxiliary signal power supply.
    2,Common wiring diagram


    ■ Use occasion:
    SAT series solid-state contactors have full-featured auxiliary contacts. Compared with traditional mechanical AC contactors, they have fast switching speeds, small impact on the grid, minimal impact on motors and related machinery, no noise, long life, and no electricity when switching. Spark generation, dust-proof, shock-proof, moisture-proof and corrosion-proof. It can be widely used in ceramic production lines, sewage installations, electric heating control, indoor lighting control, and suitable for all on-off occasions.
