SCR RELAY TRIGGER, CYCLE CONTROLLER, PMW CONTROLLER, PHASE SHIFT
CONTROLLER
CTV CYCLE CONTROLLER
u Stable regulation, energy saving and load balancing
u Manual/automatic adjustment
u regulation mode(PWM,CYC)
u Power on and slow start optional 1S-60S
u Forced power limit optional(40%-100%)
I. overview
SSR (solid state relay) zero crossing power control is applied in
heating system. The input signal is analog quantity: 4-20mA, 1-5V,
2-10v, generating PWM duty cycle control (fixed cycle) or CYC
variable cycle zero crossing control. With manual operation and
power limit function. With the variable period zero crossing
control mode, the total power load current is relatively balanced
due to the uniform distribution of load current according to sine
wave, the randomness and superposition of multiple equipment
operation, which improves the regulation accuracy and power
utilization efficiency, and avoids the ammeter and piezometer. With
the increase of capacity of power equipment, the power saving
effect is very obvious.
II. Main technical indicators
| INPUT SIGNGAL | 4-20mA,1-5V,2-10V |
| OUTPUT | 1. PWM duty cycle output with fixed period of 2S, 2. The resolution of zero crossing adjustment is 20ms, 3. A, B, C complementary output. |
| LED | Green: input signal Red: output signal |
| Slow start | 1S-60S optional |
| Power restriction | 40% - 100% |
| Power supply | 220VAC Power waste:≤8W |
III. input / output selection(ON:1,OFF:0)
Input(12):00:1-5V；10:4-20mA；01:2-10V；
Output(1):0:CYC output；1:PWM output；
IV. working waveform
1. PWM periodic power regulation
1. PWM periodic power regulation
2. CYC variable cycle power regulation
V. maximum and minimum output power regulation
1. Maximum value adjustment: when the input signal is maximum,
adjust the max potentiometer. When the L5 light is on, it indicates
the corresponding maximum output (full voltage).
2. Minimum value adjustment: when the input signal is the minimum,
adjust the Min potentiometer. When light L4 is on, it means
corresponding minimum output (0V)

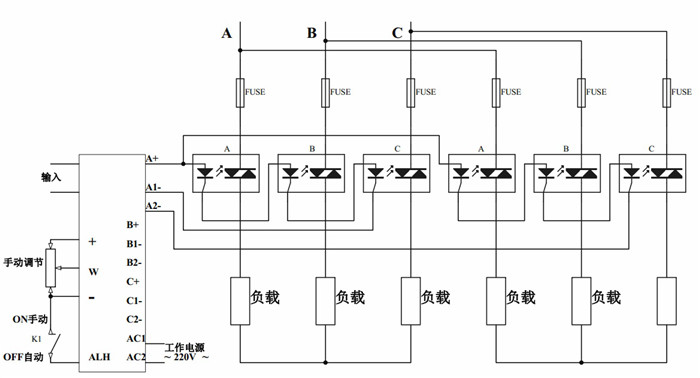

Vi. application wiring diagram
Note: B +, B1 -, B2 - and C +, C1 -, C2 - work in the same way as a
+, A1 -, A2-
VII. Boundary dimension
