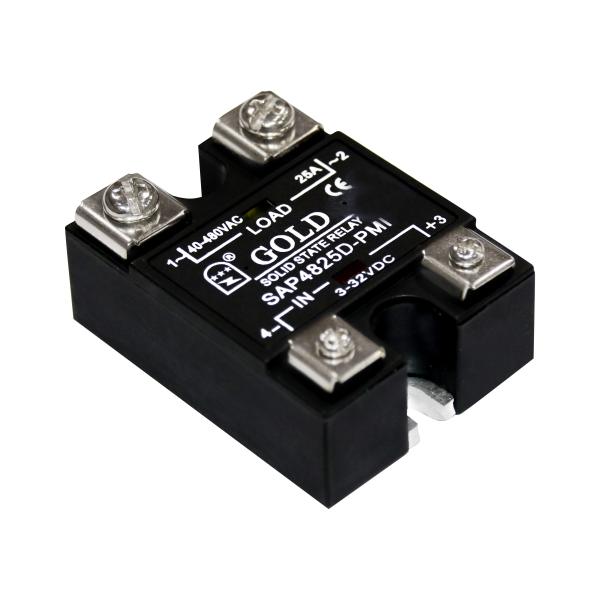

AC SSR Relay AC SSR of Horizontal Type Double LED Indicator
Specification of AC Single Phase SSR Solid State Relay
AC SSR Relay AC SSR of Horizontal Type Double LED Indicator
Main technical paramete Type | SAP4805D SAP4810D SAP4820D SAP4825D SAP4840D | SAP4850D SAP4860D SAP4880D SAP4890D SAP48100D |
| Load voltage range | 40- 530VAC |
| Max Load current | 5A | 10A | 20A | 25A | 40A | 50A | 60A | 80A | 90A | 100A |
| Isolation bet.In & out | Optical isolation ≥2500VAC 1min |
| Isolation to case | ≥2500VAC 1min |
| Control voltage range | 3-32VDC |
| Control current | 6- 20mA(20mA@ max input 32VDC) |
| Output | Zero switching |
| Turn-on voltage | ≤1.3VAC |
| Off-state leakage | ≤8mA |
| Off-state dv/dt | 300v/μs | 500v/μs |
| On or off time | 10ms @ 50Hz |
| Frequenty range | 47/63Hz |
| Status indicator | LED |
| Operating temperature | -50~ 80℃ |
| Internal actual device | 12A | 16A | 24A | 41A | 50A | 60A | 80A | 90A | 100A | 120A |
| Applications | Electric heating, Plastic machinery, Automation and control, etc. |
AC SSR of Horizontal Type Double LED Indicator
Main technical paramete Type | SAP4805D-L SAP4810D-L SAP4820D-L SAP4825D-L SAP4840D-L | SAP4850D-L SAP4860D-L SAP4880D-L SAP4890D-L SAP48100D-L |
| Load voltage range | 40- 530VAC |
| Max Load current | 5A | 10A | 20A | 25A | 40A | 50A | 60A | 80A | 90A | 100A |
| Isolation bet.In & out | Optical isolation ≥2500VAC 1min |
| Isolation to case | ≥2500VAC 1min |
| Control voltage range | 3-32VDC |
| Control current | 6- 20mA(20mA@ max input 32VDC) |
| Output | BCR, Zero switching | Two SCR inverse parallel, Zero switching |
| Turn-on voltage | ≤1.3VAC |
| Off-state leakage | ≤8mA |
| Off-state dv/dt | 300v/μs | 500v/μs |
| On or off time | 10ms @ 50Hz |
| Frequenty range | 47/63Hz |
| Status indicator | In LED and out on LED |
| Operating temperature | -50~ 80℃ |
| Internal actual device | 12A | 16A | 24A | 41A | 50A | 60A | 80A | 90A | 100A | 120A |
| Applications | Electric heating, Plastic machinery, Glass equipment, etc. |
Advantages over mechanical relays
Most of the relative advantages of solid state relays over
electromechanical relays are common to all solid-state devices when
compared to electromechanical devices.
Inherently smaller and slimmer profile than mechanical relay of
similar specification, allowing tighter packing. (If desired may
have the same "casing" form factor for interchangeability.)
Totally silent operation.
SSRs switch faster than electromechanical relays; the switching
time of a typical optically coupled SSR is dependent on the time
needed to power the LED on and off - on the order of microseconds
to milliseconds.
Increased lifetime, even if it is activated many times, as there
are no moving parts to wear and no contacts to pit or build up
carbon.
Output resistance remains constant regardless of amount of use.
Clean, bounceless operation.
No sparking, allows it to be used in explosive environments, where
it is critical that no spark is generated during switching.
Much less sensitive to storage and operating environment factors
such as mechanical shock, vibration, humidity, and external
magnetic fields.
Disadvantages
Voltage/current characteristic of semiconductor rather than
mechanical contacts:
When closed, higher resistance (generating heat), and increased
electrical noise
When open, lower resistance, and reverse leakage current (typically
μA range)
Voltage/current characteristic is not linear (not purely
resistive), distorting switched waveforms to some extent. An
electromechanical relay has the low ohmic (linear) resistance of
the associated mechanical switch when activated, and the
exceedingly high resistance of the air gap and insulating materials
when open.
Some types have polarity-sensitive output circuits.
Electromechanical relays are not affected by polarity.
Possibility of spurious switching due to voltage transients (due to
much faster switching than mechanical relay)
Isolated bias supply required for gate charge circuit
Higher transient reverse recovery time (Trr) due to the presence of
the body diode
Tendency to fail "shorted" on their outputs, while
electromechanical relay contacts tend to fail "open".
Our Company
Founded in 1992, Wuxi Gold Control Technology Co., Ltd., a private
high tech company, is specialized in the research and production of
Solid State Relays, Electronic Semiconductors, DC Motor Drivers and
AC Voltage Regulation Devices.
For the past 10 consecutive years, our company has been qualified
as "Jiangsu's private high tech business". We have also been given
the honor as "Wuxi's 10 Best Private Science & Technology
Enterprises" for years.
Our products, the electronic modules with the brand of Gold, have
been listed among "Wuxi's Renowned Products".Our company has 5
patents on Solid State Relays. Our products are widely used in
various industrial automation control areas like chemical fiber
machinery, temperature control of electric furnace, rubber &
plastic machinery, fountain control and digital-controlled
machinery, and are sold to Europe, America, Korea and Turkey.
Our Factory
Our factory can produce about 50,000 pieces each month. We can give
you good quality and reasonable prices. We have 20 professional
research people who have all been graduated from famous
universities and colleges. When producing, we have strict tests:
self-test, inter-test and special-test.
Our Certificate
Our products, the electronic modules with the brand of Gold, have
been listed among "Wuxi's Renowned Products".Our company has 5
patents on Solid State Relays. Our products are widely used in
various industrial automation control areas like chemical fiber
machinery, temperature control of electric furnace, rubber &
plastic machinery, fountain control and digital-controlled
machinery, and are sold to Europe, America, Korea and Turkey.
Our company passed the Certification of ISO9001:2000 in 2000. Our
main products have been given CE Certificate of European Union,
UL,CUL and RoHS Certificates.
